For my final project for Pixel by Pixel taught by Daniel Rozin, we were assigned to create a processing sketch that was interactive. We had a lot of freedom to choose what we wanted to do.

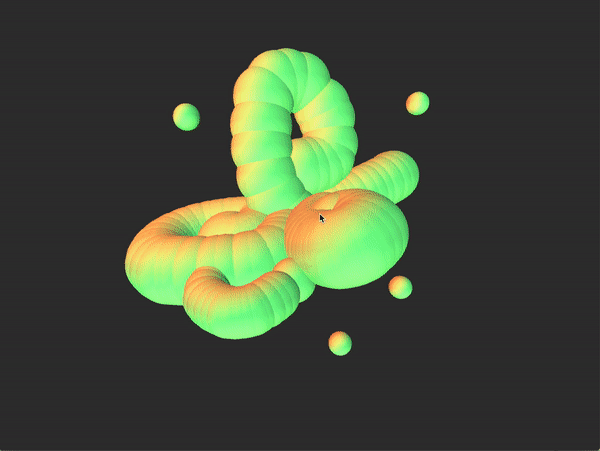

Therefore, I wanted to created a some sort of drawing pad that anyone of any age could understand how to use.
Scroll through to see the whole code!
ArrayList < MarkPoint > brushMarkPoints = new ArrayList < MarkPoint > ();
float canvasRotY;
float canvasRotX;
float xPivot, yPivot;
float hu;int rotatevar = 1;
int sphereSize= 30;void setup() {
size(1024, 768, P3D);
colorMode(HSB, 255);
xPivot = width/2;
yPivot = height/2;
}void draw() {
lights();
pointLight(255, 255, 255, 0, 0, 200);
directionalLight(51, 102, 126, 0, -1, 0);
background(0, 0, 50);
translate(xPivot, yPivot);
if (keyPressed) {
if (keyCode == LEFT) {
canvasRotY-= 0.04;
} if (keyCode == RIGHT) {
canvasRotY += 0.04;
} if (keyCode == UP) {
canvasRotX -= 0.04;
} if (keyCode == DOWN) {
canvasRotX += 0.04;
} } if (rotatevar == 1) {
canvasRotY += 0;
}
if (rotatevar >= 2) {
canvasRotY += 0.005;
} for (MarkPoint brushMarkPoint : brushMarkPoints) {
brushMarkPoint.render();
} if (mousePressed) {
fill(hu, 100, 255);
brushMarkPoints.add(new MarkPoint(mouseX - xPivot, mouseY - yPivot, sphereSize));
hu++;
if (hu > 255) hu = 0;
}
}void keyPressed() { if (key == ' ') {
rotatevar++;
if (rotatevar >= 3) {
rotatevar = 1;
}
}
if (key=='1') {
sphereSize = 20;
}
if (key=='2') {
sphereSize = 30;
}
if (key=='3') {
sphereSize = 40;
}
if (key=='4') {
sphereSize = 50;
}
if (keyCode==ENTER) {
saveFrame("out/visual####.jpg");
}
}
class MarkPoint {
// atributes
float xPos, yPos, yRot, xRot;
int sphereSize; // constructer
MarkPoint(float x, float y, float size) {
xPos = x;
yPos = y;
yRot = canvasRotY;
xRot = canvasRotX;
sphereSize = (int) size;
} // methods
void render() {
pushMatrix();
noStroke();
rotateY (canvasRotY - yRot);
rotateX (canvasRotX - xRot);
translate(xPos, yPos);
sphere(sphereSize);
popMatrix();
}
}
